Products PSVT® Vehicle Camera Front View Camera
Front View Camera

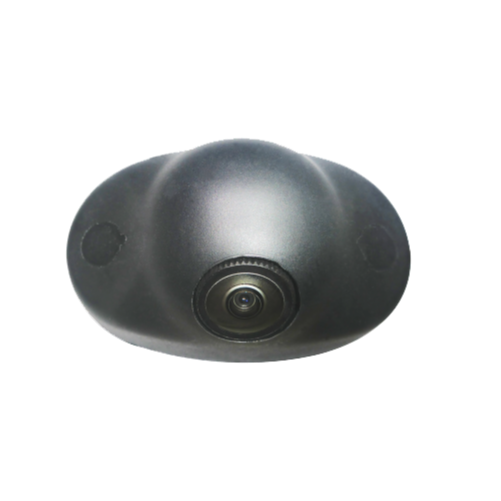

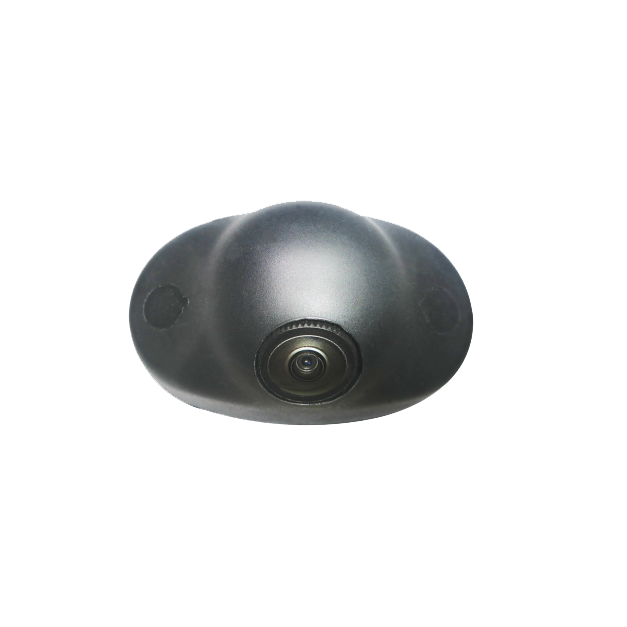

Front View Camera CS30JA
The CS30JA Front View Camera is a compact and robust imaging device engineered for reliable performance. Its core strengths include high-definition 720p video capture via a 1/4-inch CMOS sensor and an ultra-wide 150° horizontal field of view from a 1.8mm lens, significantly reducing blind spots. Built to withstand harsh environments, it operates reliably in extreme temperatures from -30°C to 70°C. The front view camera offers global compatibility with dual PAL/NTSC color systems and features a streamlined design (76x45x34mm) for versatile and easy installation on various commercial vehicles.
Send Inquiry
front-view-camera
front-view-camera
Features
01
High-Resolution Imaging:​ Utilizes a 1/4-inch CMOS image sensor to deliver a resolution of 1280x720 pixels (1.3 Megapixels), ensuring clear and detailed video output.
02
Ultra-Wide Field of View:​ Equipped with a 1.8mm fixed-focus lens, providing an extensive viewing angle of 180° (diagonally) and 150° (horizontally) for maximum situational awareness and minimizing blind spots at the front of the vehicle.
03
Broad Temperature Resilience:​ Designed for demanding environments with an operating temperature range of -30°C to 70°C and a storage temperature range of -40°C to 85°C, ensuring reliable performance in extreme weather conditions.
04
Dual Color System Compatibility:​ Supports both PAL and NTSC color television systems, offering flexibility for use in different regional markets.
05
Compact Form Factor:​ Features a small and streamlined design with dimensions of 76mm (L) x 45mm (W) x 34mm (D), facilitating easier installation and integration on various commercial vehicles.
Technical Data
Image Type 1/4" Inch CMOS
Resolution (Pixels) 1280(H)*720(V)
Effective Pixels

1.3M Pixels
Lens Size 1.8mm
Lens Angle 180°(D)*150°(H)
Color System PAL/NTSC
Operating Temperature

-30℃~70℃
Storage Temperature -40℃~85℃
Dimensions (mm) 76(L)*45(W)*34(D)
