9 Inch Monitor

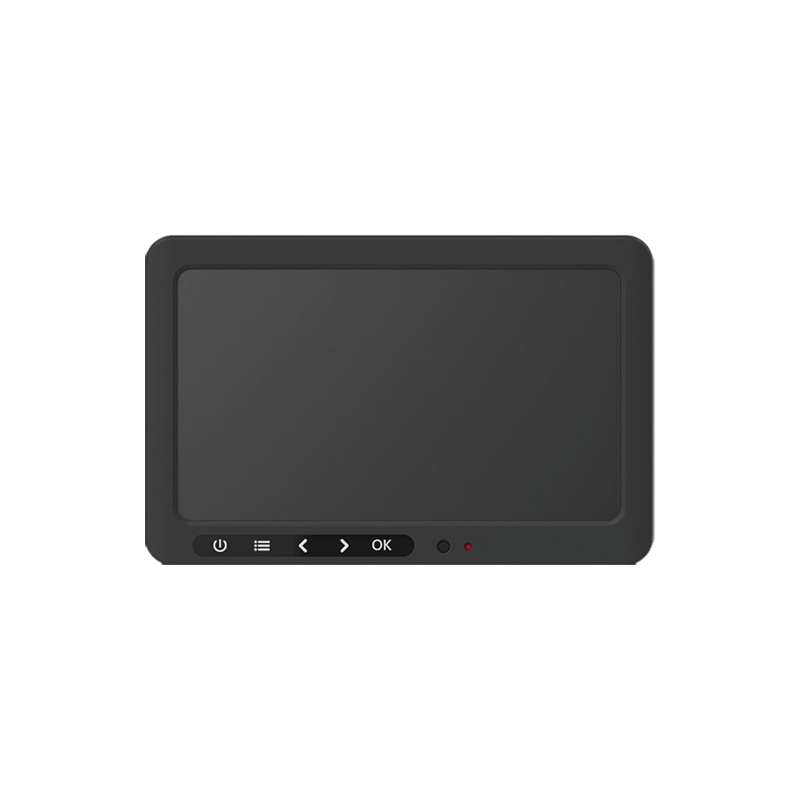

9 Inch Monitor TM90A
The TM90A is a 9-inch monitor featuring a 1024×600 digital TFT display with 85°wide viewing angles. Designed for reliable performance in harsh environments, it offers automatic brightness adjustment with anti-glare, smart CVBS/AHD input recognition, and supports resolutions up to 1080P. With a robust operating range of -30℃ to +70℃, wide voltage compatibility (DC 9-36V), and built-in failure detection, the TM90A is a durable and efficient solution for commercial vehicle applications.

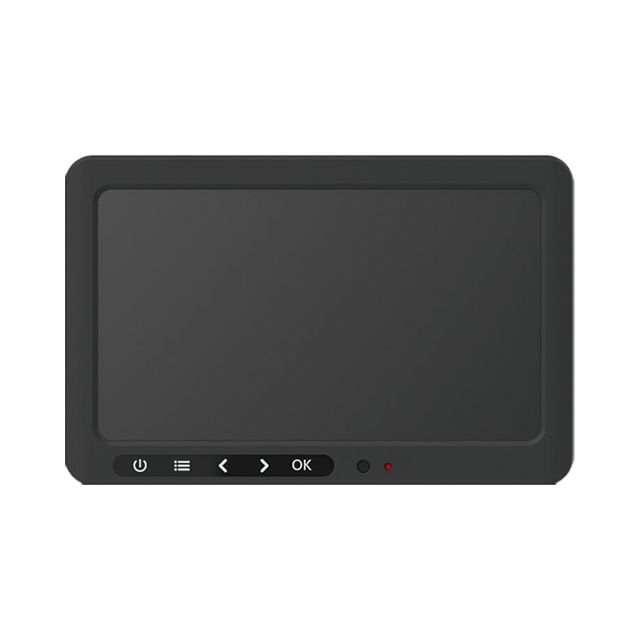

9 Inch Monitor TM90A
9 Inch Monitor TM90A
Features
01
9" Clear TFT Display: 1024×600 resolution with wide 85° viewing angles.
02
Auto Brightness with Anti-Glare: Optimizes screen clarity in varying light conditions.
03
Smart Signal Recognition: Automatically detects CVBS / AHD 720P / 1080P inputs.
04
Wide Compatibility & Power Range: Supports DC 9–36V systems with PAL/NTSC auto switch.
05
Rugged Design: Operates in -30°C to +70°C, ideal for harsh environments.
06
Integrated Failure Mode Detection: Enhances system reliability and diagnostics.
Technical Data
Resolution (Pixels)
1024*3 (RGB)*600
Wide Viewing Angle (CR>10)
(Up/Down): 85/85; (Left/Right): 85/85
Brightness
1000 cd/m²
Contrast
800
Color System
PAL / NTSC (Auto)
Video Input
1 Channel
Video Mode
CVBS/AHD720P/1080P
Response Time
35 ms (25°C)
Rated Voltage
DC 12/24 V
Operating Voltage
DC 9-36 V
Max Power Consumption
≤10W
Operating Temperature
-30°C to +70°C
Storage Temperature
-40°C to +85°C
Dimensions (mm)
230(L)*150(W)*30(D)
