AI Activue® AI Camera
AI Pedestrian & Vehicle Detection Camera
AI Pedestrian & Vehicle Detection Camera

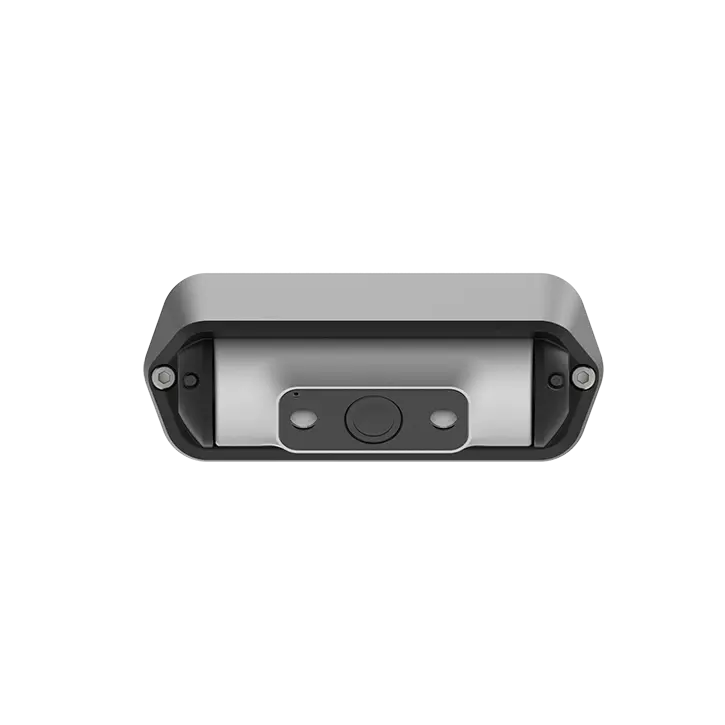

AI Camera CS50J
AI Pedestrian & Vehicle Detection Camera
Equipped with a high-definition lens and intelligent AI algorithms, the AUTOEQUIPS AI Pedestrian & Vehicle Detection Camera enhances commercial vehicle safety. It detects pedestrians, cyclists, and other vehicles around the front, sides, and rear, providing real-time visual and audible alerts. This helps drivers react promptly to potential hazards and protects vulnerable road users.
Contact Us
Features
01
Supports 720P/1080P AHD Video Output.
02
Multiple Lens Options: 60°, 150°, 170°, 210°.
03
WDR Imaging: Enhances AI detection under strong light and high contrast.
04
Complies with UNECE R158 and R159 regulations.
05
Supports three-level alarm detection with adjustable sensitivity.
06
Provides dual alerts: Individual alarm device or warning on monitor.
07
USB-to-CAN Expansion: For seamless display integration.
08
Optional Dual AHD Outputs: Connects both DVR & monitor for data networking.
Pedestrian Detection Camera

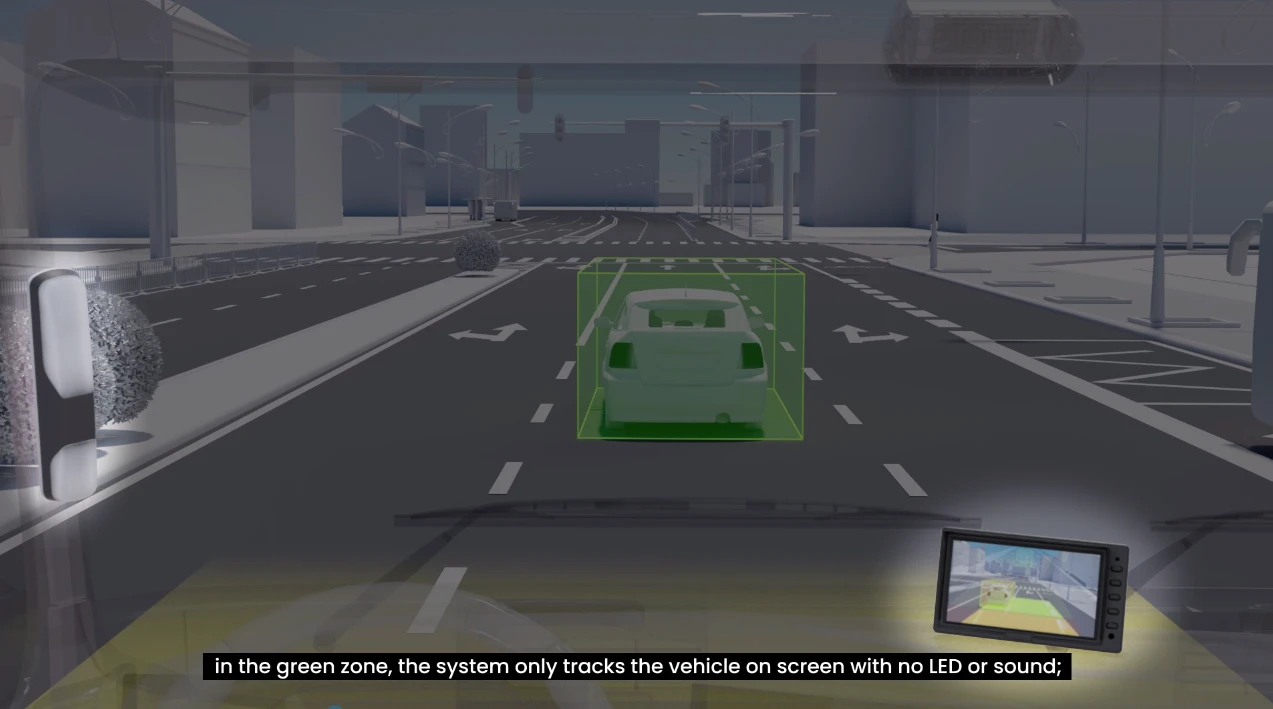

Advanced AI for Complex Pedestrian Detection
The core of AI Pedestrian & Vehicle Detection Camera CS50J is its advanced AI algorithm, capable of accurately identifying vehicles and pedestrians in a wide variety of scenarios. It is specifically trained to recognize pedestrians who may be partially obscured—such as those wearing hats, raincoats, carrying umbrellas, or riding bicycles—dramatically increasing detection reliability.
AI Pedestrian & Vehicle Detection Camera

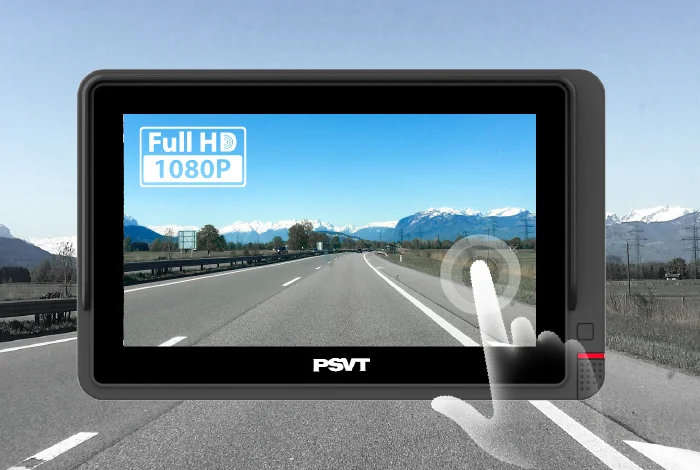

High-Definition Imaging for Unmatched Clarity
AI Pedestrian & Vehicle Detection Camera CS50J captures crystal-clear footage with support for both 720P and 1080P resolutions via AHD (Analog High Definition) video output. This ensures that every detail is visible, providing drivers and safety systems with the high-quality visual information necessary to make critical decisions in real-time.
70158236

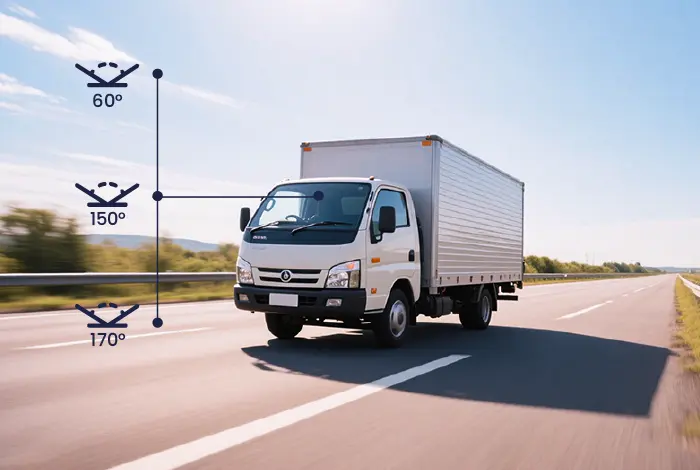

Unparalleled Flexibility with Multi-Angle Lens Options
To adapt to the unique blind spots of any commercial vehicle, AI Pedestrian & Vehicle Detection Camera offers a choice of four different lens angles: 60°, 150°, 170°, and 210°. This flexibility allows for precise coverage, from focused rear-view monitoring to ultra-wide side detection, ensuring no area is left unchecked.
49738065
Superior Image Integrity with Wide Dynamic Range
Challenging lighting conditions, such as glare from the sun or headlights at night, are no longer a problem. The integrated WDR technology balances light and dark areas within the same frame, guaranteeing sharp and clear imaging in high-contrast environments. This directly enhances the accuracy and reliability of the AI's object detection capabilities.
95621308

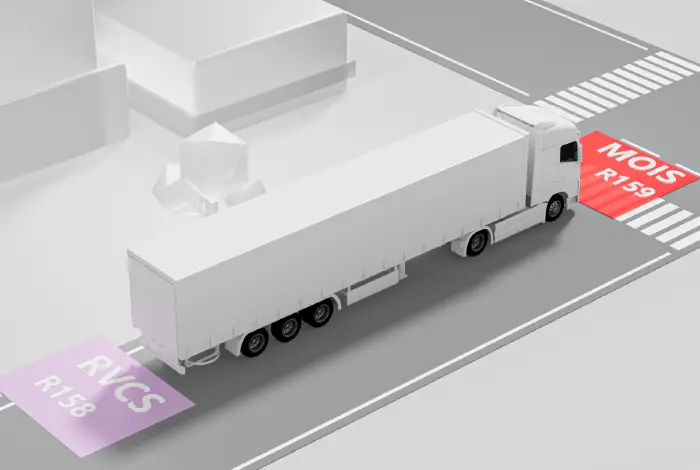

Certified Global Compliance
Designed for the international market, AI Pedestrian & Vehicle Detection Camera CS50J meets the stringent requirements of UNECE Regulations R158 (reversing motion) and R159 (Blind Spot Information Systems). This certification provides assurance that the system performs to the highest recognized safety standards.
94605812

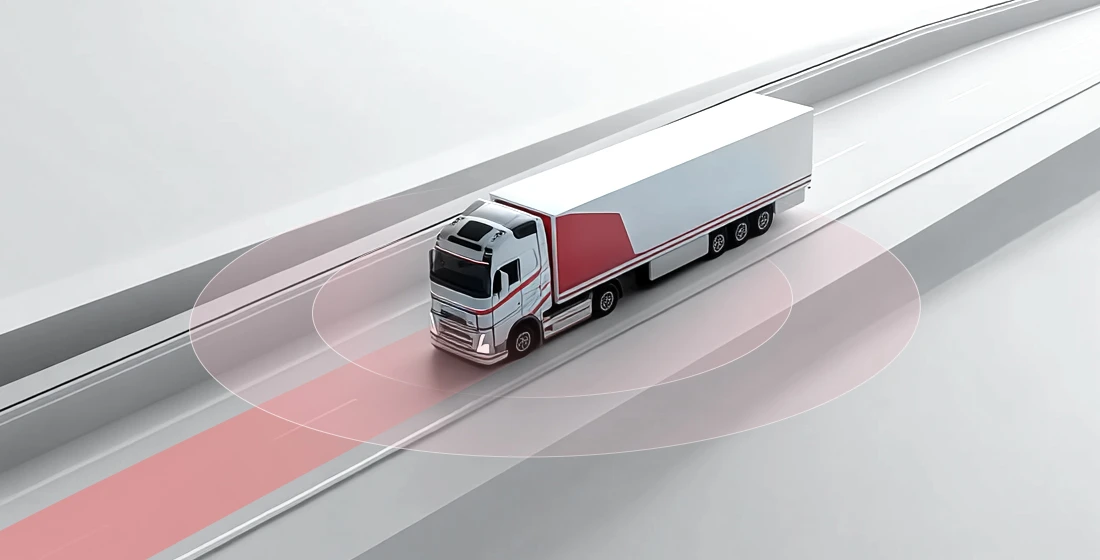

Customizable and Intelligent Alert System
The system features a three-level adjustable alarm sensitivity. AI Pedestrian & Vehicle Detection Camera allows fleet managers to fine-tune the detection parameters to suit specific operational environments, minimizing false positives while ensuring critical alerts are never missed.
32094518

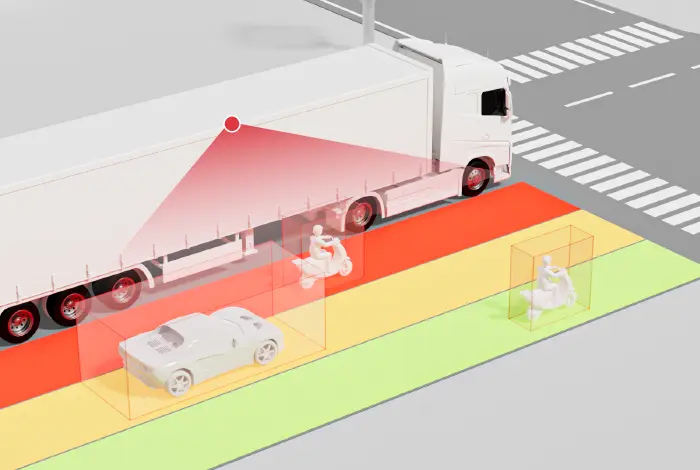

Dual-Mode Alerts for Enhanced Driver Awareness

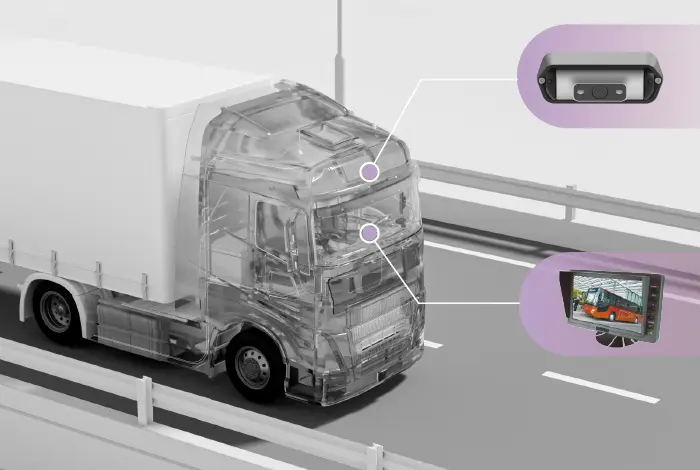

Upon detecting a hazard, AI Pedestrian & Vehicle Detection Camera CS50J triggers immediate dual warnings: a clear visual alert on the in-cab monitor, accompanied by a prompt from an audible and visual alarm beacon. This multi-sensory approach ensures the driver's attention is captured effectively, facilitating a swift response.
57812360

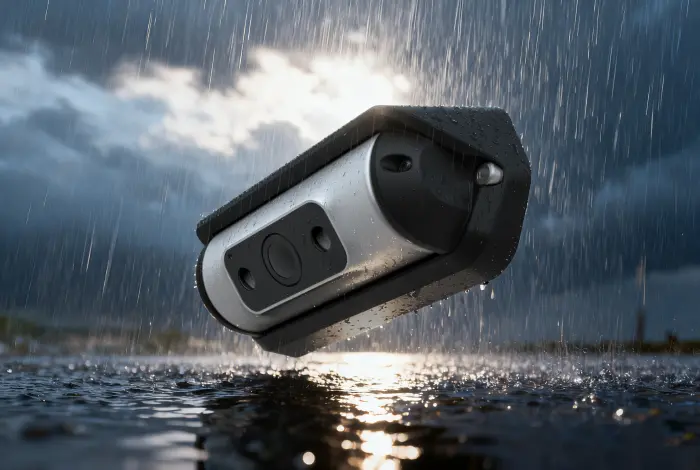

Maximum Durability with IP69K Protection
Built to withstand the harshest conditions, AI Pedestrian & Vehicle Detection Camera CS50J boasts an IP69K rating. This provides the highest level of protection against dust ingress and high-pressure, high-temperature water jets, making it ideal for long-term use in all weather and cleaning cycles.
Product Specifications

Model

CS50J

AI Function

Identify and mark obstacles, pedestrians, vehicles, bicycles and other targets in the blind zone

Intelligent early warning

The display screen and sound prompt the driver to pay attention to obstacles in the blind spot

Wide dynamic

Support

Image sensor

1/2.9’

Resolution

AHD 1920*1080

Video input

1080P 25 Frames/1080 30 Frames

Video output

AHD

FOV

Horizontal: 153°, vertical: 82°, diagonal: 178°

System format

PAL/NTSC

SNR

≥46dB

Minimum illuminance

0.1Lux@ (F2.0，AGC ON)

Day/Night mode

Automatic

Infrared distance

2-10 Meters

Waterproofing grade

IP69K

Operating voltage

DC：10V-36V

Power consumption

≤4W

Operating temperature

-20℃~+70℃

Storage temperature

-40℃~+80℃

Dimension

136mm*47mm*56mm
Applications Across Vehicle Types
AI pedestrian & vehicle detection camera CS50J is appliable for various vehicle types, such as Public transport (buses), school buses, trucks, engineering vehicles, mining vehicles, construction mechines, forklifts, etc. It enhances driver awareness, reduces accident risk, and supports safer operations in complex urban and industrial environments.
Construction Vehicles
Trucks
