10 Inch Monitor
10 Inch Monitor TM10G
The TM10G is a 10" vehicle monitor featuring a 1024×600 TFT LCD screen, quad AHD input, and flexible display modes including single, split, triple, and quad view. It supports automatic camera switching, multilingual OSD, mirror/normal image settings, and day/night mode. With built-in speaker, wide voltage compatibility, and protection against short circuits and voltage fluctuations, it ensures reliable performance in tough environments.

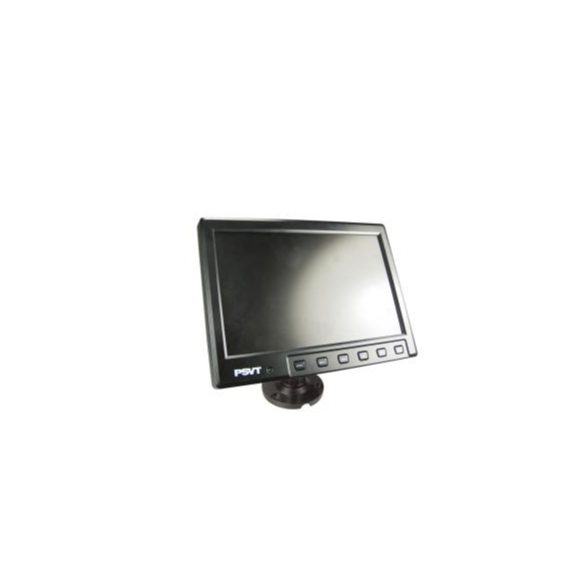

10-Inch Monitor TM10G

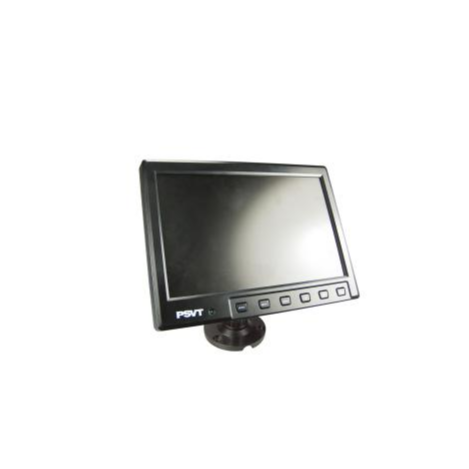

10-Inch Monitor TM10G
Features
01
Large 10" TFT LCD Screen: Tailored for heavy-duty vehicle applications.
02
Quad-View Support: Built-in control box with 4-channel AHD input; supports single, split, triple, and quad view.
03
Auto Display Switching: Smart trigger with priority (CAM1 > CAM2 > CAM3 > CAM4).
04
Customizable Viewing: Mirror/Normal settings for each camera; Day/Night mode selectable by pressing single button.
05
Multilingual OSD: Supports 7 languages for global use.
06
Enhanced Protection: High-low voltage and short-circuit protection for device safety.
07
Built-In Speaker: Integrated audio output for alerts and guidance.
Technical Data
Resolution (Pixels)
1024*3 (RGB)*600
Wide Viewing Angle (CR>10)
(Up/Down): 60/45; (Left/Right): 70/70
Brightness
450 cd/m²
Contrast

500

Color System
PAL/NTSC (Auto)
Video Input
4 Channels
Video Mode
AHD
Response Time
20 ms (25℃)
Rated Voltage
DC 12/24 V
Operating Voltage
DC 9-36 V
Max Power Consumption
≤7.5W
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Dimensions (mm)
255(L)*183(W)*43(H)
