7 Inch Monitor

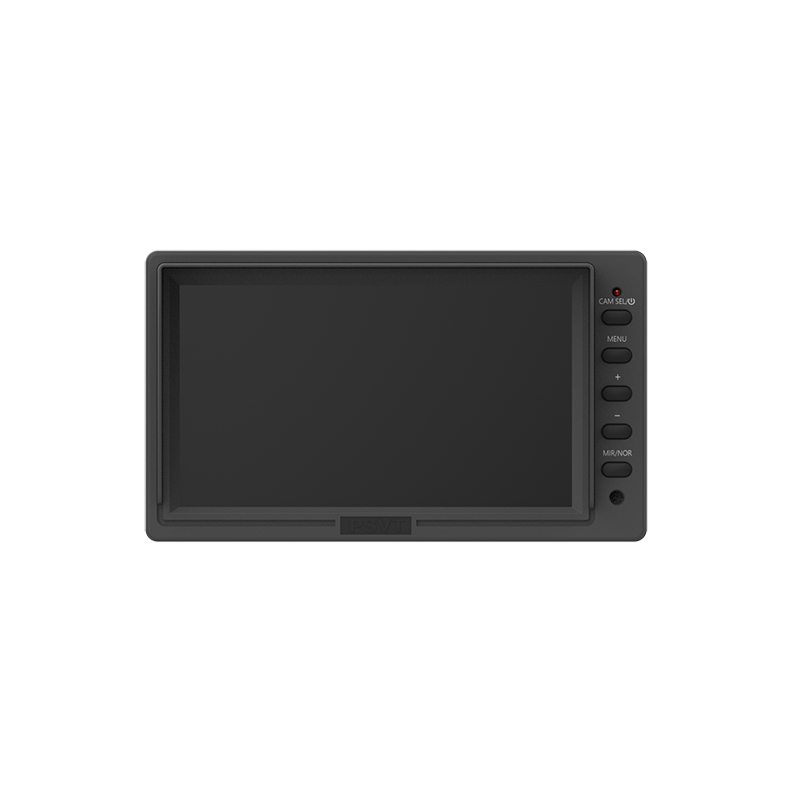

7 Inch Monitor TM70HC
The TM70HC is a 7-inch AHD monitor with built-in dual camera input, V1 priority switching, and individual trigger wires. It features 1024×600 resolution, auto day/night adjustment, mirror/normal view settings, 7-language OSD, and a built-in speaker. Its operating range and wide voltage support make it easy to install and reliable in tough environments.
7 Inch Monitor TM70HC
7 Inch Monitor TM70HC
Features
01
Dual Camera Input: Built-in control box supports 2-channel AHD input with V1 priority and individual trigger wires.
02
Clear Visual Performance: 1024×600 resolution, 500 cd/m² brightness, and wide viewing angles (Up/Down 70°/75°, Left/Right 75°/75°).
03
Smart Display Adjustment: Automatic day/night brightness adjustment and independent mirror/normal image settings.
04
User-Friendly Design: Easy to install and stock, with 7-language OSD and built-in speaker.
05
Reliable for Vehicle Use: Operates from -20°C to +70°C with wide voltage input and compact 29mm depth.
Technical Data

Resolution (Pixels)

1024*3 (RGB)*600

Wide Viewing Angle (CR>10)

(Up/Down): 70/75; (Left/Right): 75/75

Brightness

500 cd/m²

Color System

PAL / NTSC (Auto)

Video Input

2 Channels

Video Mode

AHD

Response Time

20 ms (25℃)

Rated Voltage

DC 12/24 V

Operating Voltage

DC 9-36 V

Max Power Consumption
≤10W
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Dimensions (mm)
198(L)*115(W)*29(D)
