Products PSVT® Vehicle Monitor 7 Inch Monitor
7 Inch Monitor

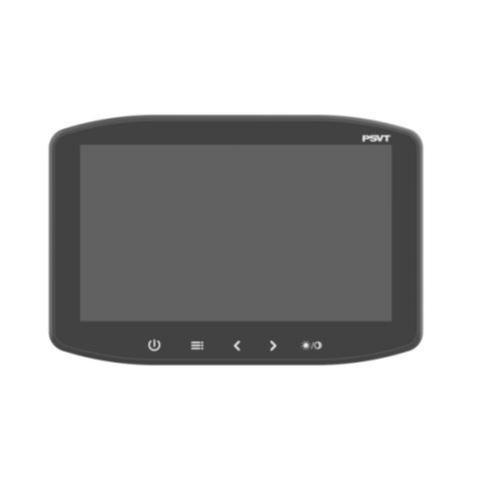

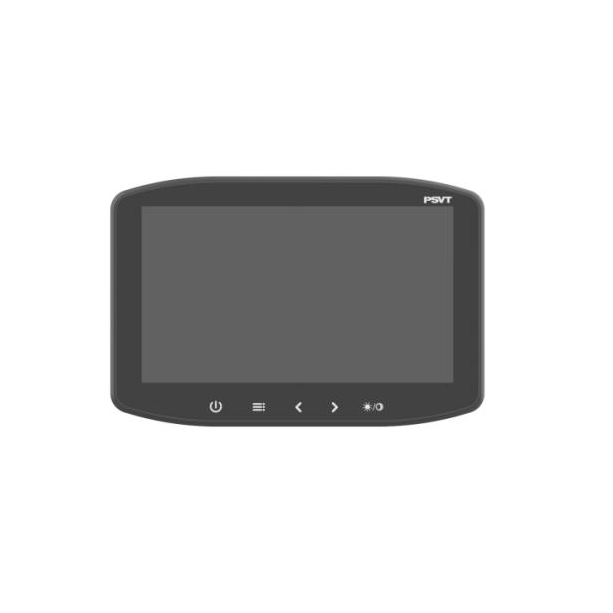

7 Inch Monitor TM70R
The TM70R is a 7-inch vehicle monitor featuring 1024×600 resolution, 2-channel AHD/CVBS input, and auto PAL/NTSC switching. With 350 cd/m² brightness, wide 70° viewing angles, and a 20 ms response time, it ensures clear and responsive visuals. Its low power consumption (≤5W), wide voltage range (DC 9–32V), and durable design make it a reliable choice for harsh vehicle environments.
Send Inquiry
7 - Inch Monitor TM70R
7 - Inch Monitor TM70R
Features
01
Dual Signal Support: Compatible with AHD/CVBS video modes with 2-channel input and automatic PAL/NTSC switching.
02
Clear Display: 1024×600 resolution, 350 cd/m² brightness, and wide 70° viewing angles ensure sharp display quality.
03
Efficient Performance: Low power consumption (≤5W) with fast 20 ms response time.
04
Flexible Compatibility: Supports DC 9–32V input.
05
Durable Design: Reliable operation from -20°C to +70°C, suitable for harsh environment.
Technical Data

 Resolution (Pixels)

 1024*3 (RGB)*600

 Wide Viewing Angle (CR>10)

 (Up/Down): 70/70; (Left/Right): 50/70

 Brightness

 350 cd/m²

 Contrast

 800

 Color System

 PAL / NTSC (Auto)

 Video Input

 2 Channels

 Video Mode

 AHD/CVBS (Auto)

 Response Time

 20 ms (25℃)

 Rated Voltage

 DC 12/24 V
Operating Voltage
DC 9V-32V
Max Power Consumption
≤5W
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Dimensions (mm)
187(L)*100(W)*30.5(D)
