7 Inch Monitor

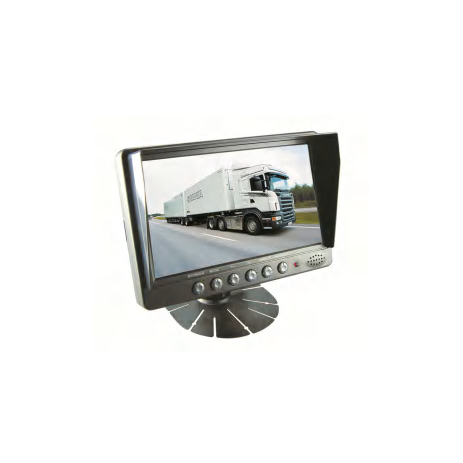

7 Inch Monitor TM70LC
The TM70LC is a compact 7-inch vehicle monitor featuring dual camera input with priority switching, auto day/night adjustment, and mirror/normal view settings. With 1024×600 resolution, wide viewing angles, and built-in speaker, it delivers clear visuals and intuitive operation. Designed for durability, it supports a wide voltage range and performs reliably in harsh environments.
7 Inch Monitor TM70LC
7 Inch Monitor TM70LC
Features
01
Dual Camera Support: Built-in 2-channel control box with trigger-based auto-switching (V1 priority).
02
Smart Display Control: Auto day/night adjustment, mirror/normal image switch, and OSD accessible in all modes.
03
User-Friendly: Easy to install, supports 7 languages, and includes built-in speaker for alerts.
04
Clear & Wide View: 1024×600 resolution with wide 75° viewing angles and 500 cd/m² brightness.
05
Durable & Safe: Operates from -20℃ to 70℃ with wide voltage range and protection against over-voltage and short circuits.
Technical Data

Resolution (Pixels)

1024*3 (RGB)*600

Wide Viewing Angle (CR>10)

(Up/Down): 70/75; (Left/Right): 75/75

Brightness

500 cd/m²

Contrast

800

Color System

PAL / NTSC (Auto)

 Video Input

 2 Channels

 Video Mode

 AHD

 Response Time

 20 ms (25℃)

 Rated Voltage

 DC 12/24 V

Operating Voltage
DC 9-36 V
Max Power Consumption
≤10W
Operating Temperature
-20℃ to 70℃
Storage Temperature
-30℃ to 80℃
Dimensions (mm)
194(L)*137(W)*66(D)
