7 Inch Monitor

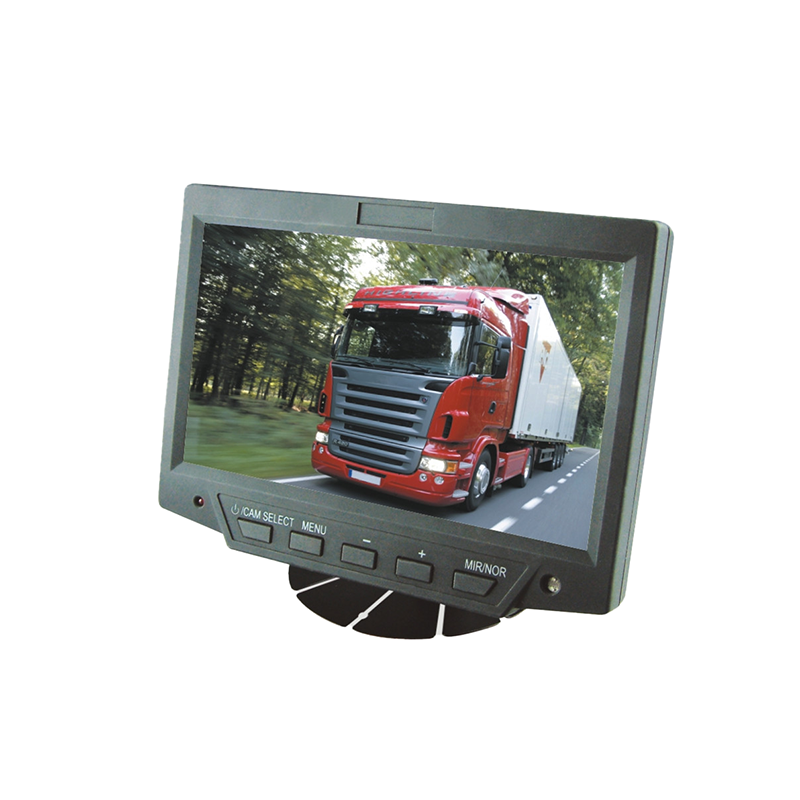

7 Inch Monitor TM70DC
The TM70DC is a 7-inch monitor designed for dual-camera systems, featuring built-in trigger control with C1 priority and a 3-second delay for C2. It delivers clear visuals with 1024×600 resolution, wide viewing angles, and 500 cd/m² brightness. With auto trigger activation, mirror/normal switching, day/night sensor, and memory recall, it offers smart and safe operation. Its compact design, multilingual OSD, and wide voltage support make it ideal for commercial vehicle use.
7 Inch Monitor TM70DC
7 Inch Monitor TM70DC
Features
01
Dual Camera Input: Built-in control box supports two channels with trigger priority (C1 > C2).
02
Auto Trigger Activation: Monitor powers on when triggered; controls disabled during active trigger for safety.
03
High-Quality Display: 1024×600 resolution, 500 cd/m² brightness, wide 75° viewing angles, and 800:1 contrast.
04
Smart Functions: Mirror/normal image switching, day/night sensor, and last selecting memory function.
05
User-Friendly Design: 7-language OSD, built-in speaker, compact size, and wide voltage input (DC 9–36V).
Technical Data

 Resolution (Pixels)

 1024*3 (RGB)*600

 Wide Viewing Angle (CR>10)

 (Up/Down): 70/75; (Left/Right): 75/75

 Brightness

 500 cd/m²

 Contrast

 800

 Color System

 PAL / NTSC (Auto)

 Video Input

 2 Channels

 Video Mode

 AHD

 Response Time

 20 ms (25℃)

 Rated Voltage

 DC 12/24 V

Operating Voltage
DC 9-36 V
Max Power Consumption
≤10W
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Dimensions (mm)
176(L)*130(W)*28.5(D)
