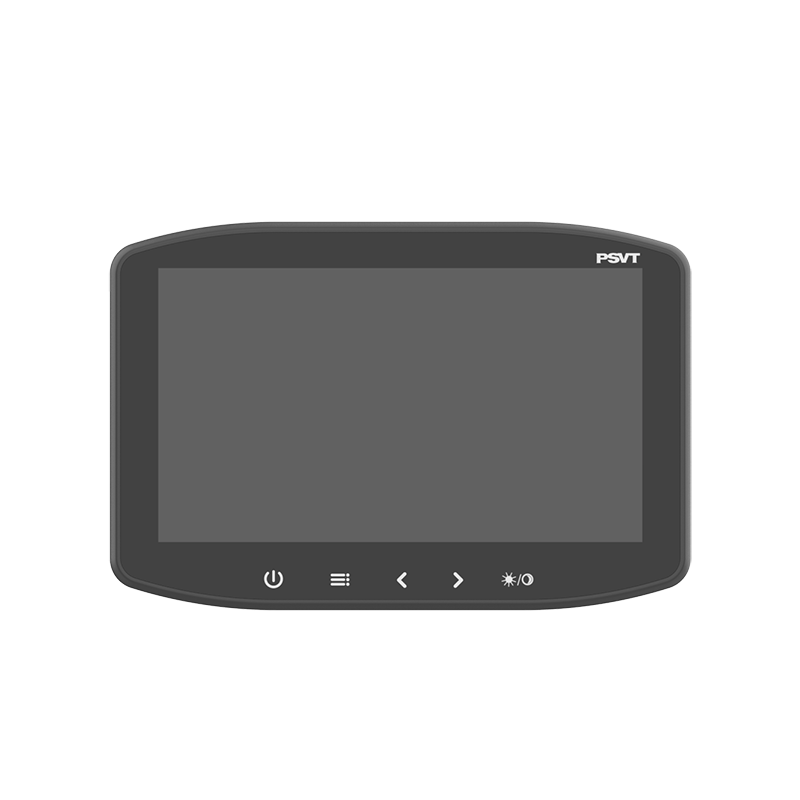

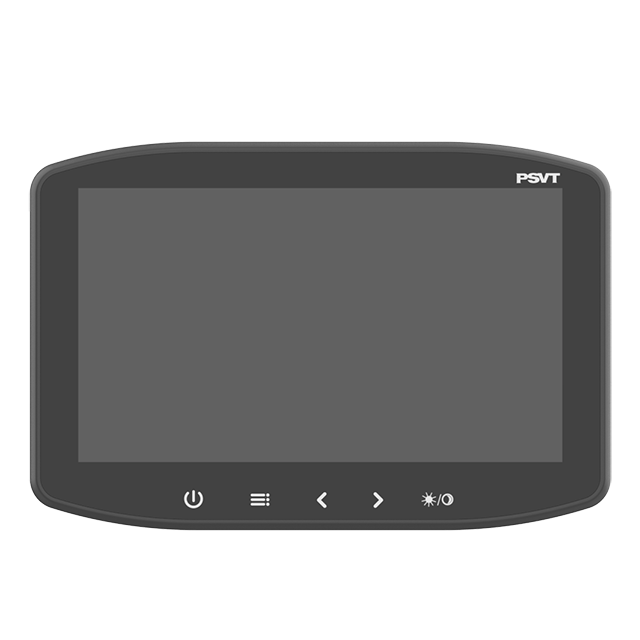

7 Inch Monitor DM70L
The DM70L is a 7-inch vehicle monitor featuring dual 720P/1080P input channels and high-speed LVDS transmission with NS2521 SerDes, supporting stable video over distances up to 50 meters. With 1024×680 resolution, PAL/NTSC auto-switching, and 350 cd/m² brightness, it delivers clear, smooth visuals. Its low EMI(electromagnetic interference), low noise, and low power design ensure reliable performance in demanding vehicle environments.
7 Inch Monitor DM70L
7 Inch Monitor DM70L
Features
01
Dual-Channel Input: Supports two 720P/1080P video inputs for clear, detailed imaging.
02
Clear Visual Performance: 1024×680 resolution, 350 cd/m² brightness, wide vertical viewing, and PAL/NTSC auto-switch color system.
03
LVDS Transmission: NS2521 SerDes enables stable, long-distance signal delivery up to 50 meters.
04
Lag-Free Display: Optimized for smooth video playback with minimal delay.
05
Optimized Signal Quality: Low electromagnetic interference, low noise, and low power consumption.
Technical Data

 Resolution (Pixels)

 1024*3 (RGB)*680

 Serdes

 NS2521(LVDS)

Wide Viewing Angle (CR>10)

 (Up/Down): 75/75; (Left/Right): 50/75

 Brightness

 350 cd/m²

 Contrast

 500

 Color System

 PAL / NTSC (Auto)

 Video Input

 2 Channels (720P/1080P)

 Video Mode

 LVDS

 Response Time

 20 ms (25℃)

Rated Voltage
DC 12/24 V
Operating Voltage
DC 9-36 V
Max Power Consumption
≤10W
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Dimensions (mm)
187(L)*125(W)*30.5(D)
