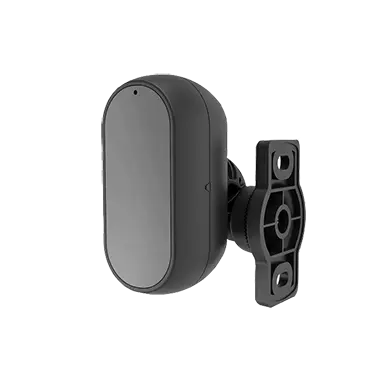

DSM Camera CS20H
The Driver Behavioral Status Monitoring (DSM) camera CS20N is a specialized in-vehicle solution designed to enhance driving safety by detecting and alerting against risky behaviors such as fatigue and distraction. Seamlessly integrated with DVR systems, it enables real-time monitoring and proactive warnings to the driver. With a high dynamic range, the camera adapts to challenging lighting conditions, ensuring clear visuals even under harsh sunlight or backlight. Its compact design allows for quick and efficient installation, making it a practical safety upgrade for commercial vehicle fleets.
DSM Camera CS20H
DSM Camera CS20H
Features
01
Designed to monitor driver behavior such as fatigue and distraction.
02
Works in conjunction with DVR systems to provide real-time alerts.
03
High dynamic range ensures clear imaging in various lighting conditions, including direct sunlight or backlight.
04
Monochrome output optimized for behavioral analysis.
05
Compact and easily mountable near the A-pillar for convenient installation.
06
Supports wide voltage input, suitable for different vehicle power systems.
07
Maintains stable performance in a broad temperature range.
Technical Data

Imaging device

ISP:FH8536H

Standard

PAL

Resolution

1280 (H) * 720 (V)

Pixels

720P

Output image

DMS monochrome

Vertical sync frequency

50Hz / 60Hz

FOV

Horizontal angle 55°

Effective diagonal 65°

Vertical angle 31°

Effective distance

1-2m

Dimensions

75.6mm(L)*33.5mm(W)*60.8mm(H)

Wide voltage operation

DC 6-16V DC 12V:140mA

Camera lens

3.6mm

Storage temperature(℃)

-30°C~80°C

Operating temperature(℃)

-20°C~70°C
