Milano Blind Spot Detection
Our advanced safety equipment, which includes top-notch camera and sensor systems, provides comprehensive coverage around the vehicle, significantly reducing blind spots and safeguarding pedestrians, cyclists, and other vehicles. Discover how Autoequips supports compliance with Milan's blind spot regulations, enhancing safety for a smoother, more secure urban mobility experience.
Vehicle Camera CM50D
Alarm TM32A
Vehicle Monitor DM70MR
Vehicle Camera CS50A-AI
Control Box CB747

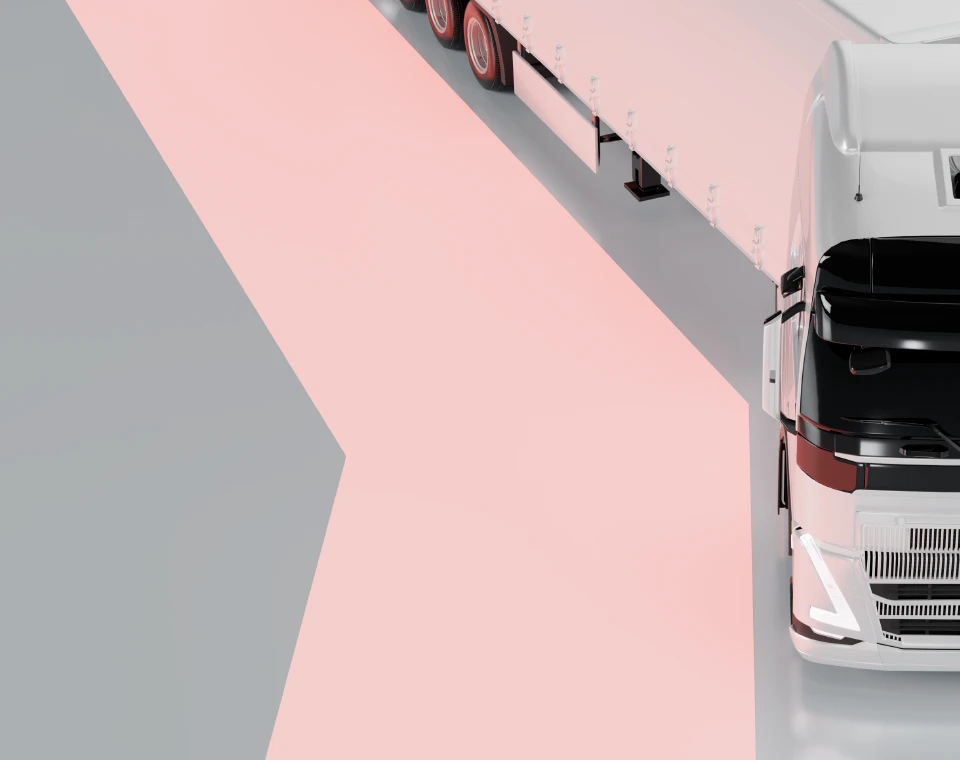

Milano Blind Spot Detection
Control Box CB747
Vehicle Camera CM50D
Vehicle Camera CS50A-AI
Vehicle Camera CS50N
Vehicle Monitor DM70MR
Alarm TM32A
GPS AP103A
Contact Us
Features
01
Enhanced fusion technology: AI Image and Radar Integration Solution.
02
AI VRU Motion Trajectory Prediction.
03
Innovative Auto Panning function for Articulated Vehicles.
04
Maintains robust performance even in challenging weather (snow, rain and fog).
05
Ensures reliable performance in dim lighting and at night.
06
TÜV Rheinland certified, meets the Milan Blind Spot Resolution 971/2023.
07
Quick installation and straightforward calibration.
AI VRU Motion Trajectory Prediction
The function leverages sensor fusion and advanced machine learning models to accurately predict VRU (Vulnerable Road User) motion trajectories by analyzing real - time positional, velocity, and environmental data.

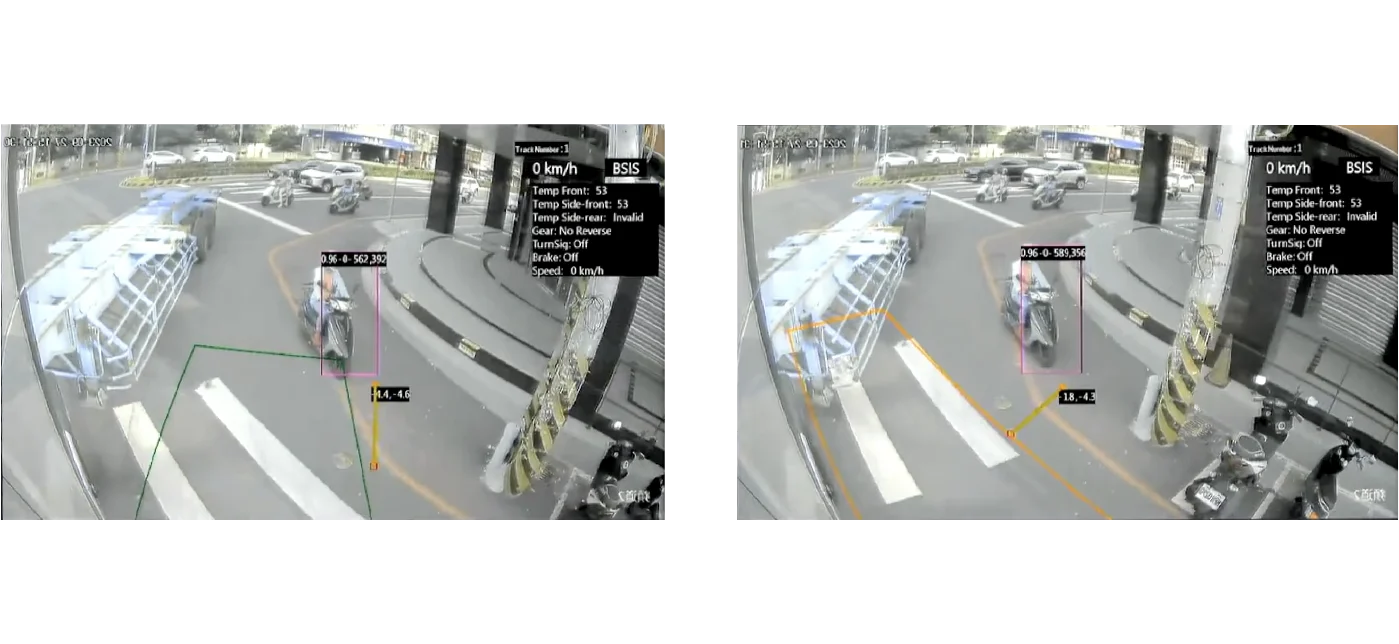

Innovative Auto Panning function for Articulated Vehicles
By real-time capturing of steering angles and vehicle motion data, combined with geometric modeling and AI algorithms, the system dynamically adjusts the detection zone to continuously track key areas of the articulated vehicle body.
Milano Blind Spot Detection
Milano Blind Spot Detection
Intuitive Interactive Alerts and User Interface Design
The warning device’s character pattern changes from yellow to red and flashes quickly until the danger passes.
Product Specifications
Milano BSD
CB747 CM50D CS50N CS50A-AI TM32A AP103A TM70MR

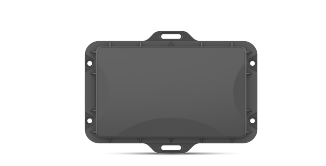

CB747

Memory Card

TF card 1 slot

CAN

2ch

Video Input

4ch

Video Output

1ch

Waterproof & Dust Resistance

IP69K

Rated Voltage

DC 12V/24V

Operating Voltage

DC 9V~36V

Power Consumption

≦30W (4 camera)

Operating Temperature

-30℃~70℃

Storage Temperature

-40℃~85℃

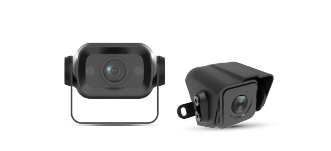

CM50D

Image Sensor

1/3" CMOS image sensor

Resolution

1920*1080P

Color System

PAL/NTSC

FOV

F:152°(H)85°(V); R:110°(H) 57°(V)

Video Output

AHD 1080P 25/30 FPS

Minimum Illumination

0.1 Lux

Waterproof & Dust Resistance

IP69K

Rated Voltage

DC 12V

Operating Voltage

DC 8V~16V

Operating Temperature

-40℃~85℃
CS50N

Image Sensor

1/2.8" CMOS image sensor

Resolution

1920*1080P

Color System

PAL/NTSC

FOV

145°(H)

Video Output

AHD 1080P 25/30 FPS

Minimum Illumination

0.1 Lux

Waterproof & Dust Resistance

IP68

Rated Voltage

DC 12V

Operating Voltage

DC 8V~16V

Operating Temperature

-40℃~85℃

Storage Temperature

-40℃~85℃

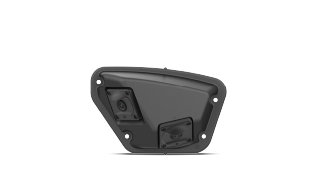

CS50A-AI

Image Type

1/3” Inch CMOS

Resolution (Pixels)

1280(H)*720(V)

Effective Pixels

2.0M Pixels

Lens Size

2.3mm

Lens Angle

160°(D)*150 °(H)*76°(V)

Color System

PAL/NTSC

Operating Temperature

-20℃~70℃

Storage Temperature

-40℃~80℃

Night Vision Distance

<10m

Dimensions (mm)

79(W)*63.5(H)*48.3(D)

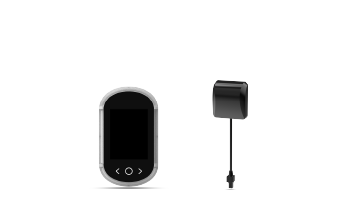

TM32A

Memory Card

TF card 1 slot

CAN

1

Rated Voltage

DC 12V / 24V

Operating Voltage

DC 9V ~ 36V

Power Consumption

≤4W

Operating Temperature

-30℃~70℃

Storage Temperature

-40℃~85℃
AP103A

Ultra high track sensitivity

-165dBm

Baud rate

115200.10Hz

Operating voltage

3.0V~5.5V

Power consumption

50mA@3.3V

Patch Antenna Size

35*35*4mm

Small form factor

55+0.5x50+0.5x18.4+0.3mm

Communication type

UART/TTL

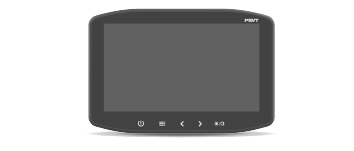

TM70MR

Resolution (Pixels)

1024*3 (RGB)*600

Wide Viewing Angle (CR>10)

(Up/Down): 70/70; (Left/Right): 50/70

Brightness

350 cd/m²

Contrast

800

Color System

PAL/NTSC (Auto)

Video Input

2 Channels

Video Mode

AHD/CVBS (Auto)

Response Time

20 ms (25°C)

Rated Voltage

DC 12/24V

Operating Voltage

DC 9V-32V

Max Power Consumption

5W

Operating Temperature

-20°C~70°C

Storage Temperature

-30°C~80°C

Dimensions (mm)

187(L)*100(W)*30.5(D)
