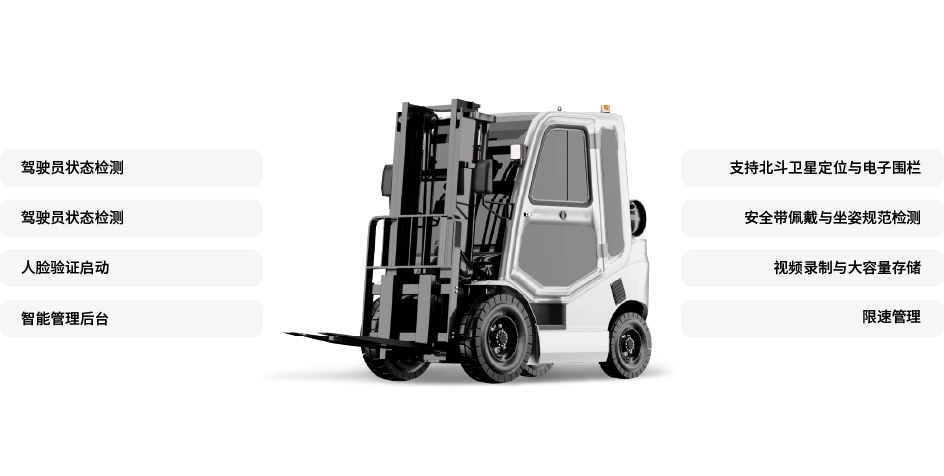

Functional composition
Support Beidou satellite positioning and electronic fence
Driver status detection
AI blind spot detection
Face verification started
Seat belt wearing and sitting posture standard testing
Video recording and mass storage
Intelligent management background
Speed limit management
Compatible with multiple types of cameras, flexible adaptation to monitoring needs
The DVRF04H supports four 1080P/720P AHD analog camera inputs and one IPC network video input, adapting to diverse surveillance needs and ensuring clear and stable images. It also features one CVBS/AHD video output for easy connection to a local monitor or traditional display terminal, enabling real-time image preview and system compatibility expansion.
Facial recognition start-up control to ensure dedicated person and car management
As specialized industrial vehicles requiring professional operation, forklifts have strict requirements for operator access management. The DVRF04H integrates with a DSM camera to enable identity verification through facial recognition. After inserting the key, the driver must complete facial recognition verification before starting the vehicle, effectively preventing unauthorized operation and improving operational safety and regulatory compliance.

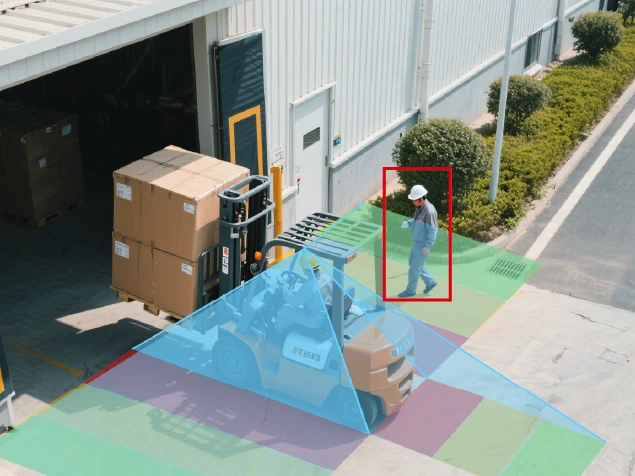

AI identifies blind spot dynamics and proactively prevents collisions
To address the safety challenges faced by forklifts in warehousing, manufacturing, and logistics environments due to their frequent contact with pedestrians, the DVRF04H features an integrated AI-powered pedestrian collision detection camera. This camera quickly identifies pedestrians entering a warning zone, implementing a three-level zoned alarm mechanism. Combined with an onboard display and audible and visual alarms, the camera provides real-time driver alerts, significantly reducing the probability of accidents and establishing a proactive safety protection mechanism.
Seat belt wearing detection, automatic warning of violations
Wearing seatbelts and maintaining proper driving posture are key measures for ensuring operational safety and reducing management risks. The DVRF04H supports deep integration with seatbelt detection and posture sensors, enabling real-time monitoring of driver behavior. If violations such as not wearing a seatbelt or abnormal sitting posture are detected, the system immediately issues an alert and automatically uploads the event log to the backend management platform, enabling intelligent and traceable safety management.
High-risk behavior warning and driving compliance analysis
The DVRF04H can be integrated with driver monitoring cameras (DSM) to intelligently identify and analyze driving behaviors. If the driver is detected engaging in behaviors that could affect driving safety, such as dozing off, talking on the phone, or smoking, a voice reminder is triggered and event data is uploaded to the management platform. With behavior recording and video playback capabilities, companies can effectively improve driving behavior management and implement a traceable, data-driven risk control system.
Intelligent speed management to effectively control speeding risks
Speeding is a key factor in forklift accidents. The DVRF04H, when linked to a throttle controller, can implement speed limit management. It automatically issues a warning when the vehicle exceeds a preset speed threshold and guides the driver to slow down by limiting throttle acceleration, ensuring smooth and safe operation and helping businesses effectively mitigate the safety risks associated with speeding.
Beidou satellite precise positioning, intelligent geo-fence management
The DVRF04H features a built-in Beidou satellite positioning module, enabling precise vehicle tracking and operation logging. It also integrates geo-fencing, allowing for flexible configuration of work zones and restricted areas. When a vehicle crosses a boundary or enters a restricted area, the system automatically triggers an alarm and uploads the event to the management platform, enabling intelligent management and risk prevention of the work area, improving operational safety and controllability.

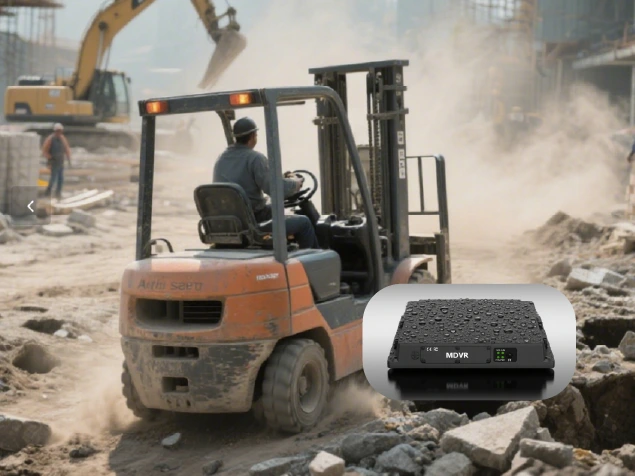

Designed for harsh working conditions
The DVRF04H is engineered for the complex environments of industrial vehicles and features an innovative breather valve that effectively balances internal and external air pressure, enhancing sealing stability. The entire unit has passed MIL-STD-810G vibration testing up to 2.5G and is IP67-rated for water and dust resistance, ensuring stable operation in harsh operating conditions such as high dust, vibration, and humidity, providing continuous and reliable safety.
Large-capacity storage to ensure key data retention
The DVRF04H supports dual SD card slots, each supporting up to 512GB of storage capacity, enabling long-duration HD video recording. This ample storage space meets the needs of continuous monitoring and data retention, eliminating the risk of frequent cleanup and data loss. Whether recording daily operations or tracing unusual events, the system reliably preserves critical image data, enabling stable and efficient security management.

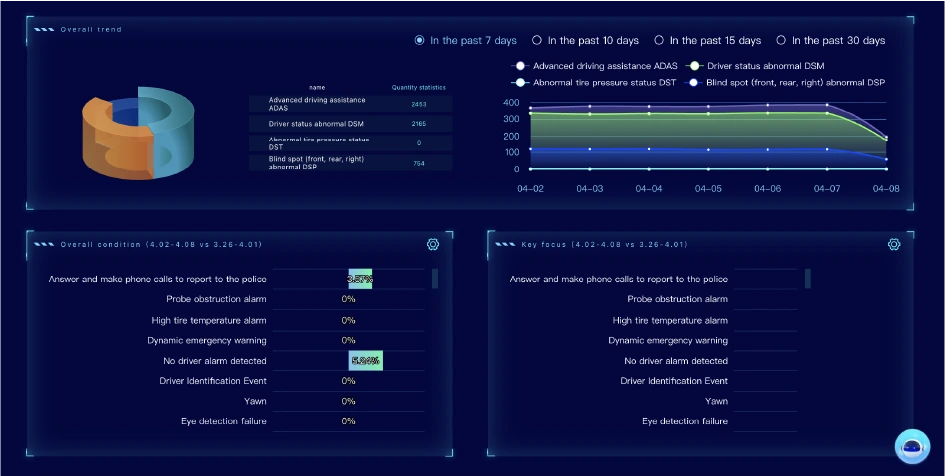

Efficient data management empowers fleet operations
The DVRF04H is equipped with an intelligent management platform that supports multi-vehicle networking and centralized data control. The system reliably processes large amounts of video and behavioral data from each vehicle in the fleet, automatically categorizing and storing it to ensure complete, secure, and traceable information. The platform allows for rapid access to records by time, location, and event type, enabling remote viewing, centralized scheduling, and exception analysis, providing efficient and systematic data support and operational assurance for the fleet.
Application Scenario
The DVRF04H is suitable for a variety of on-board applications, including forklifts, construction machinery, sanitation vehicles, logistics and distribution vehicles, and school buses. It boasts excellent environmental adaptability and system scalability. By integrating driver behavior monitoring, high-definition video recording, GPS tracking, geo-fencing, and voice alerts, the system enables real-time awareness and remote management of vehicle operating status. Whether used to improve forklift operational compliance, remotely dispatch construction vehicles, or ensure the safety of sanitation and school bus operations, the DVRF04H provides enterprises with a visual, traceable, and quantifiable intelligent safety management solution.
